WELCOME TO GRANADA SPORT WORLD |
|
EPA Certificated| 50cc ATV | 110cc ATV | 150cc ATV | 250cc ATV | 350cc ATV | 400cc ATV | 650cc ATV
|

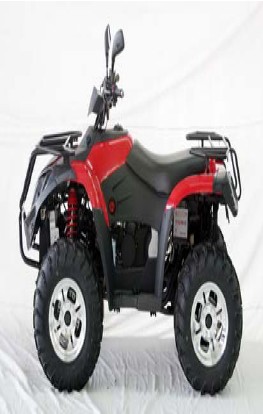

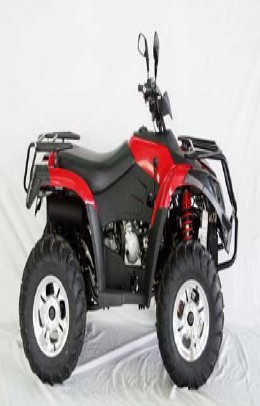

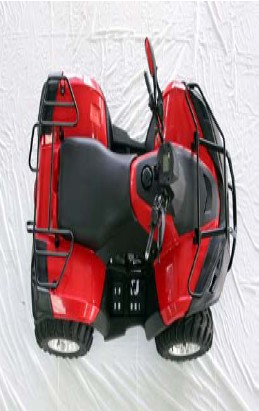

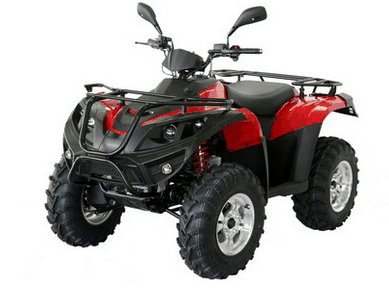

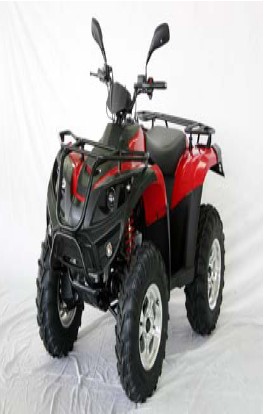

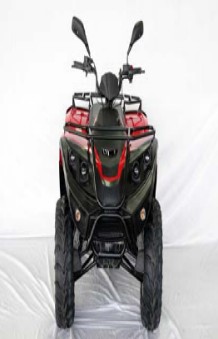

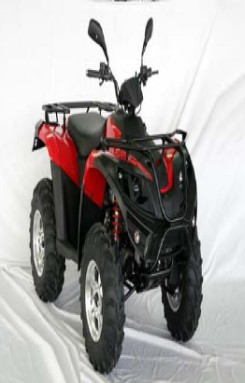

PUMA 400 cc |
|
| 4 Stroke, 4 Speed Semi-Auto with Reverse, Shaft Drive, Independent Front Suspension, Head/Brake Lights |
| Engine Type |
2 Cylinder, V‐Twin, 4‐Stroke, SOHC |
| Engine Displacement |
351.9cc |
| Bore x Stroke |
80 X 70mm |
| Fuel System |
Carburetor |
| Cooling System |
Liquid‐Cooled |
| Ignition |
T.C.I |
| Max. Power Output |
19kw/7000r/min |
| Fuel Capacity |
27N.M/5500r/min |
| Lubrication System |
Splash & Press |
| Starting System |
Electric Start |
| Transmission Mode |
Automatic CVT with H/L/N/R |
| Final Drive |
Shaft Drive 4WD |
| Shift Switch(2WD/4WD |
YES |
| Battery |
1212V 14AhV 14Ah |
| Wheels and Brakes |
|
| Tyres Front |
25X8‐12 |
| Tyres Rear |
25X10‐12 |
| Parking |
Mechanics Parking Brake |
| Suspension Front |
MacPherson Independent Suspension |
| Suspension Rear |
Twin‐A Arm Independent Suspension |
| Brakes Front / Rear |
Hydraulic Disk Brake |
| Dimensions and Weight |
|
| Product Dimension(LxWxH |
2,110x1,140x1,200mm |
| Carton Dimension(LxWxH) |
2,280x1,180x860mm |
| Seat Height |
915 mm |
| Wheelbase |
1,280mm |
| Ground Clearance |
253mm |
| Dry Weight |
330kg |
| Gross Weight |
395kg |
| |
|
| Container Load ing |
30 units/40'HQ |
| |
|
Gallary
|
|
