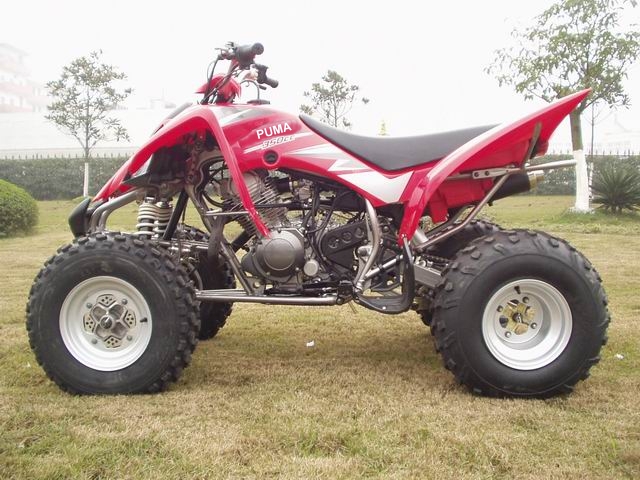

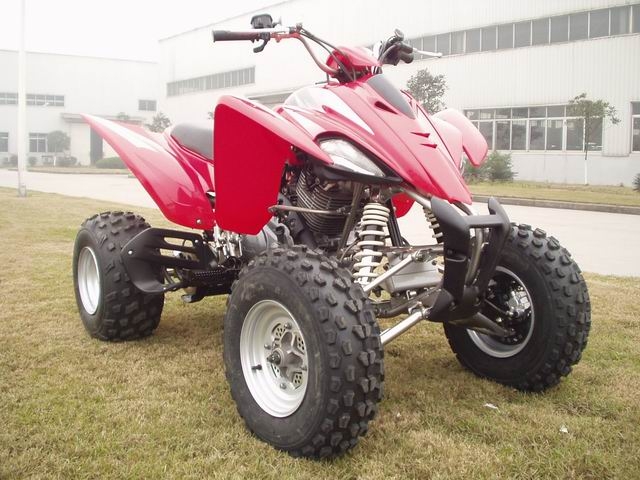

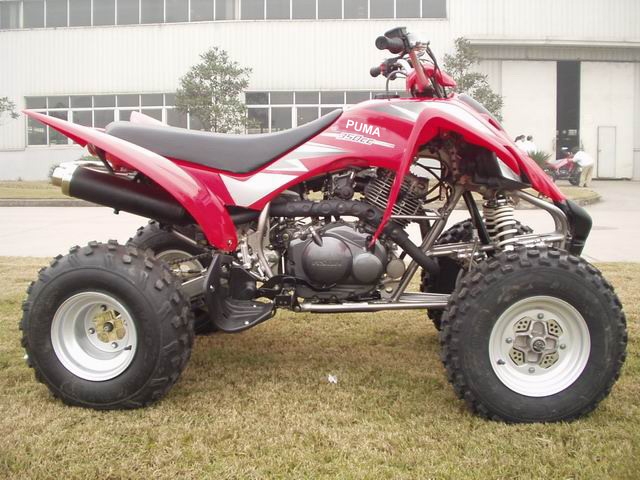

Puma 350cc |
|
| 4 Stroke, 4 Speed Semi-Auto with Reverse, Shaft Drive, Independent Front Suspension, Head/Brake Lights |
| Engine Type |
4-Stroke, air-cooled,5 speeds, semi-automatic |
| Cylinder Arrangement |
single cylinder |
| Transmission System |
shaft drive |
| Bore x Stroke (mm) |
71 x 58 |
| Piston Displacement (cc) |
329.6 |
| Compression Ratio |
8.7:1 |
| Maximum Power (kw/r/min) |
10 |
| Maximum Torque (N.m./rpm) |
15/6000 |
| Starter System |
electric/recoil backup |
| Lubrication |
pressuring splash |
| Transmission |
5 speeds, semi-automatic |
| Overall LxWxH (in) |
74x41x45 |
| Wheel Base (in) |
46 |
| Seat Hight (in) |
32 |
| Min. Turning Radius (mm) |
2900 |
| Ground Clearance (in) |
6 |
| Rider Capacity |
1 Person |
| Dry Weight (lb) |
385 |
| Brake (Front/Rear) |
drum/drum |
| Tyre, Front |
AT23 X 7-10 |
| Tyre, Rear |
AT22 X 10-10 |
| Ignition Type |
C.D.I |
| Fuel Tank Capacity (L) |
12 |
| Engine Oil Capacity (L) |
1.6 |
| Gear Oil Capacity (L) |
0.27 |
| Front Suspension |
Independent front suspension |
| Rear Suspension |
swing arm |
| Parking Brake |
Mechanical Lock |
| Max. Load Capacity (lb) |
363 |
| Max. Speed (mi/hr) |
120 |
| Battery |
12V-14A |
| PACKING SIZE (in) |
77x43x33 |
