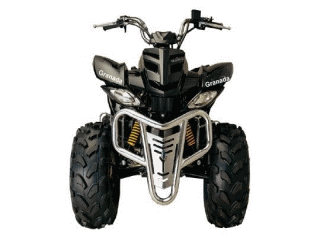

Cougar 150cc
4-Stroke, Fully Automatic, V-belt CVT,
Indepent Front Suspension, Head/Brake Lights, Rear Disc Brake
Engine Type 4-Strokes, Air Cooled,Fully-Automatic
Cylinder Arrangement Single Cylinder
Transmission System Chain Drive
Bore x Stroke (mm) 57x57.8
Piston Displacement (cc) 147.4
Compression Ratio 9.0:1
Maximum Power (kw/r/min) 7.0 / 7500
Maximum Torque (N.m./rpm) 8.3 Nm/5500rpm
Starter System Electric/ Kick
Lubrication Forced pressure(wet sump)
Transmission V-Belt CVT
Overall LxWxH (in) 64x36x36
Wheel Base (in) 40
Seat Hight (in) 29
Min. Turning Radius (mm) 2800
Ground Clearance (in) 4
Rider Capacity 1 Person
Dry Weight (lb) 275
Brake (Front/Rear) Drum/Disc
Tyre, Front 19x7-8
Tyre, Rear 18x9.5-8
Ignition Type C.D.I
Fuel Tank Capacity (L) 7.8
Engine Oil Capacity (L) 0.9
Gear Oil Capacity (L)
Front Suspension Independent,Telescopic Arm
Rear Suspension Swing Arm
Parking Brake Mechanical Lock
Max. Load Capacity (lb) 210
Max. Speed (mi/hr) 45
Battery 12V-9A
PACKING SIZE (in) 63x31x33/G.W. 385LB


Granada 150 ATV (Blue)


Granada 150 ATV (Black)

Granada 150 ATV (Green)

Granada 150 ATV (Red)

Granada 150 ATV (Yellow)
