Red Cat 110cc
  KeyFeatures
4 Stroke, 4 Speed Semi-Auto with Reverse, Shaft Drive, Independent Front Suspension, Head/Brake Lights
  Specifications
Engine Type 4-Strokes, Air Cooled ,4 Speeds Semi-Automatic
Cylinder Arrangement Single Cylinder
Transmission System Shaft Drive
Bore x Stroke (mm) 50.0 x 53.5
Piston Displacement (cc) 105
Compression Ratio 9.1:1
Maximum Power (kw/r/min) 5.2/8000-8500
Maximum Torque (N.m./rpm) 6.2/5500-6000
Starter System Electric
Lubrication Auto
Transmission 4 Speed, Semi Automatic
Overall LxWxH (in) 61x36x36
Wheel Base (in) 40
Seat Hight (in) 29
Min. Turning Radius (mm) 2800
Ground Clearance (in) 4
Rider Capacity 1 Person
Dry Weight (lb) 256
Brake (Front/Rear) Drum/Drum
Tyre, Front 19x7-8
Tyre, Rear 18x9.5-8
Ignition Type C.D.I.
Fuel Tank Capacity (L) 7.8
Engine Oil Capacity (L) 0.95
Gear Oil Capacity (L) 0.15

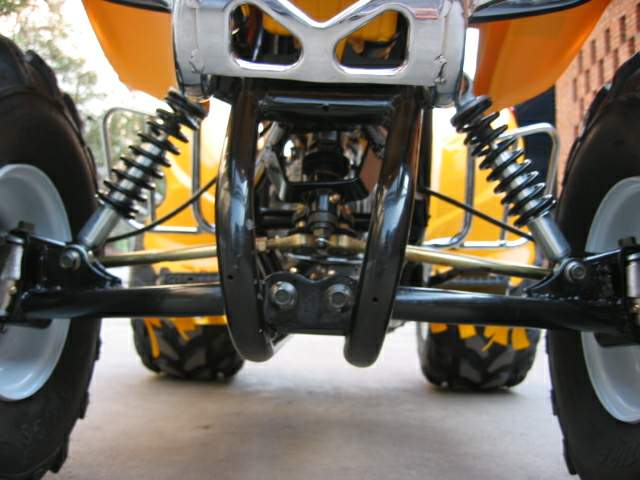

Front Suspension Independent Telescopic Arm
Rear Suspension Swing Arm
Parking Brake Mechanical Lock
Max. Load Capacity (lb) 210
Max. Speed (mi/hr) 40
Battery 12V-9A
PACKING SIZE (in) 57x33x26/G.W.350LB



Red Cat 110 ATV (Blue)

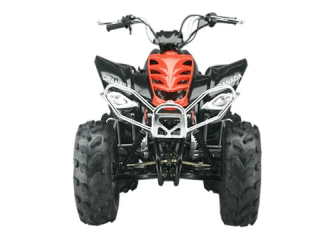

Red Cat 110 ATV (Black)

Red Cat 110 ATV (Green)

Red Cat 110 ATV (Red)

Red Cat 110 ATV (Yellow)

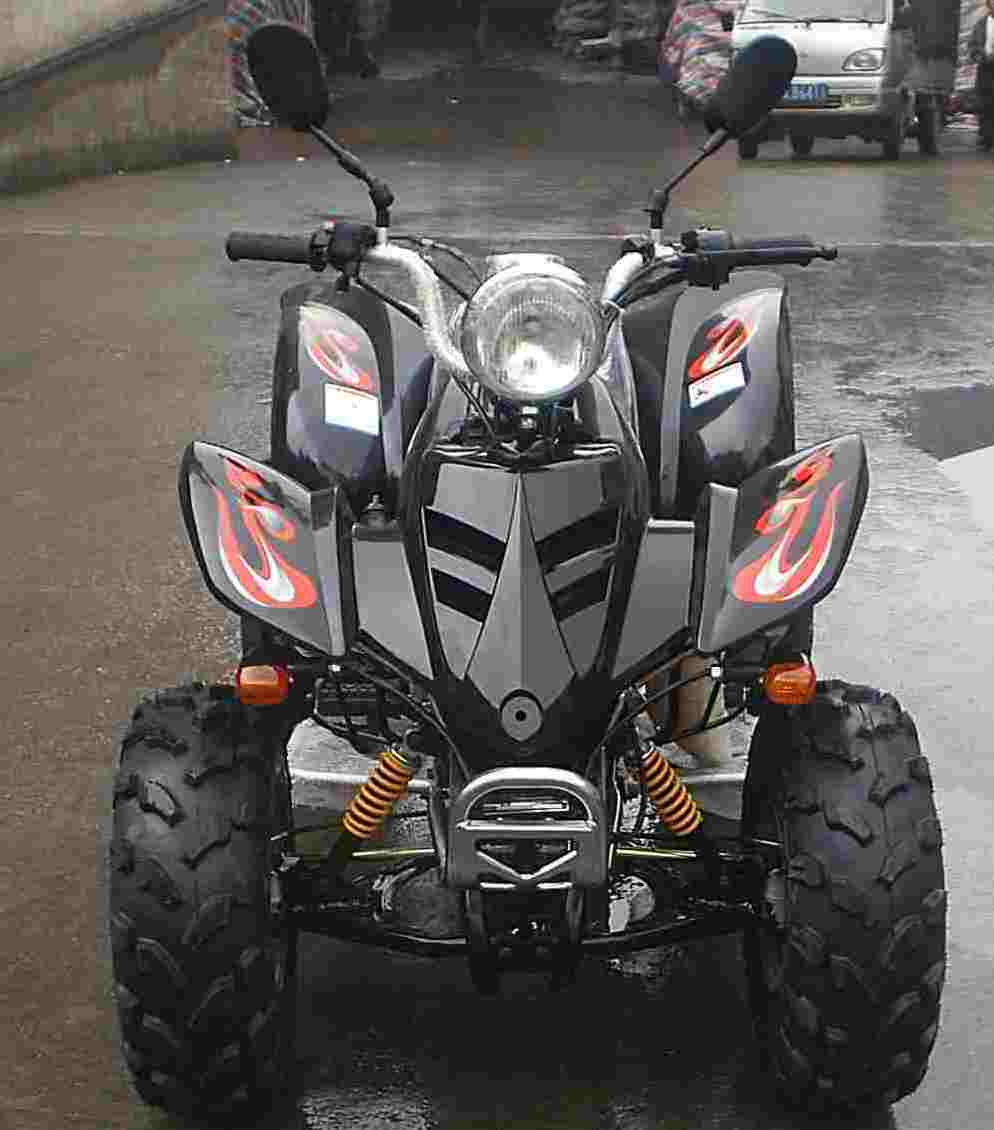

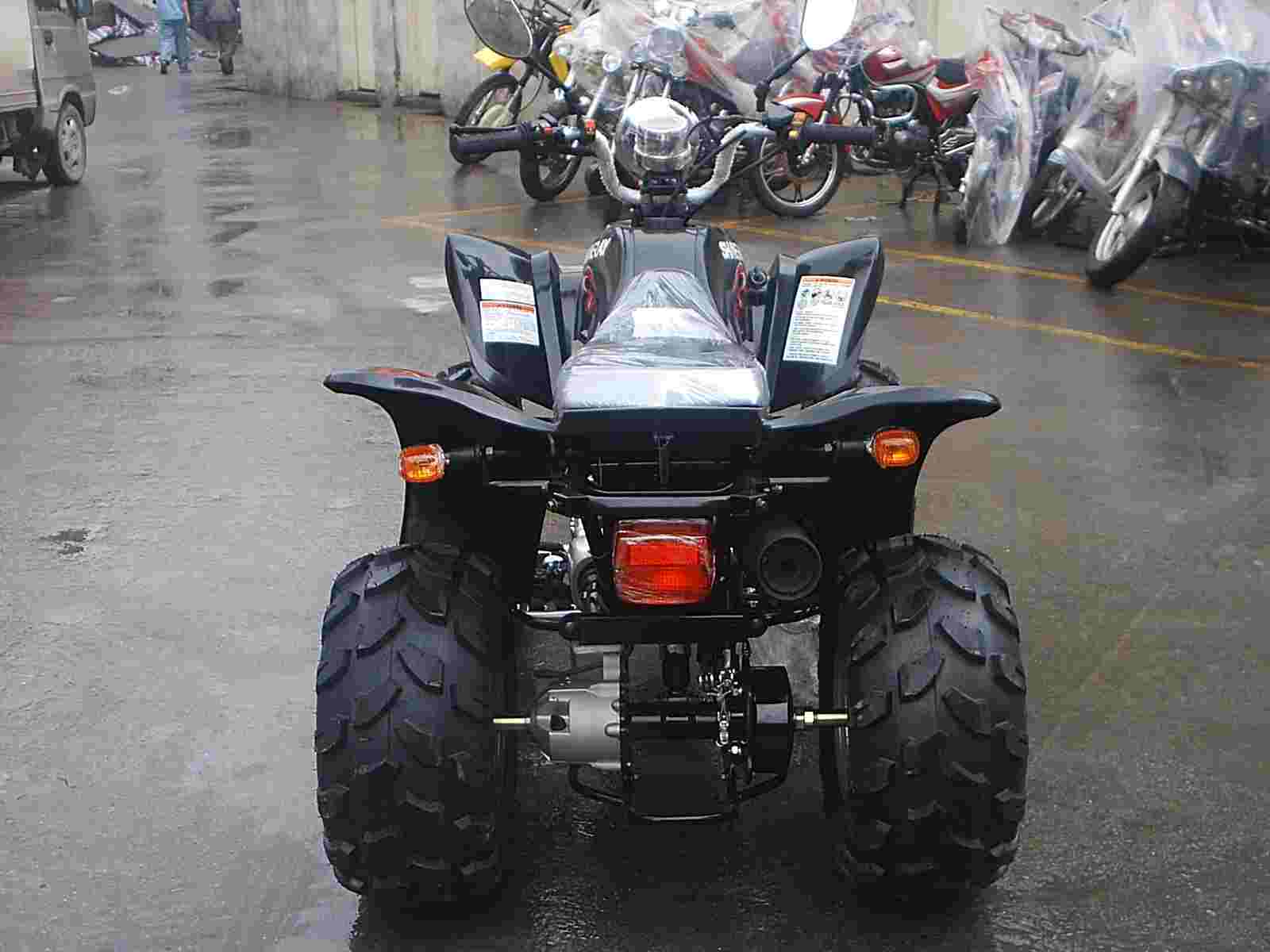

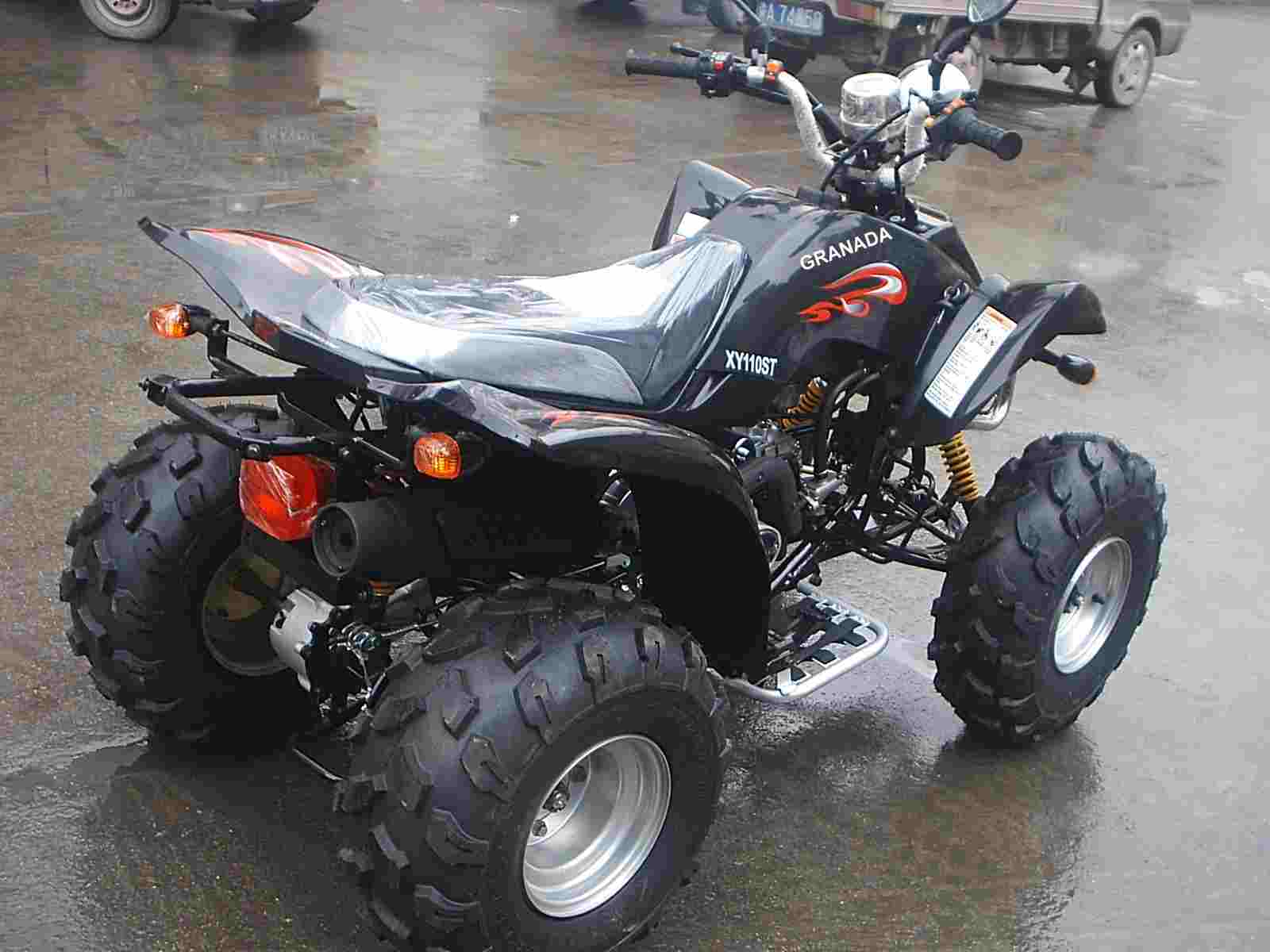

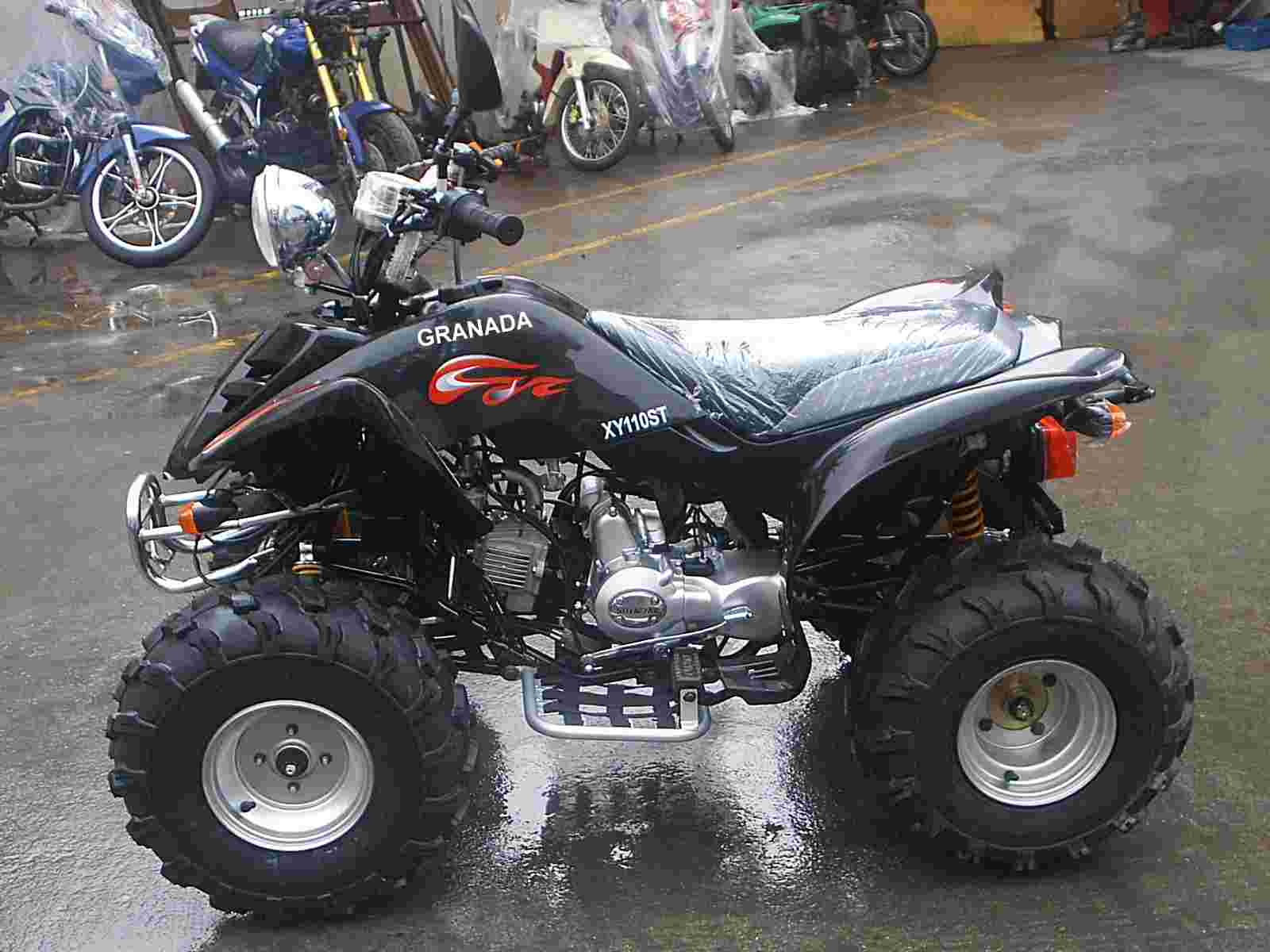

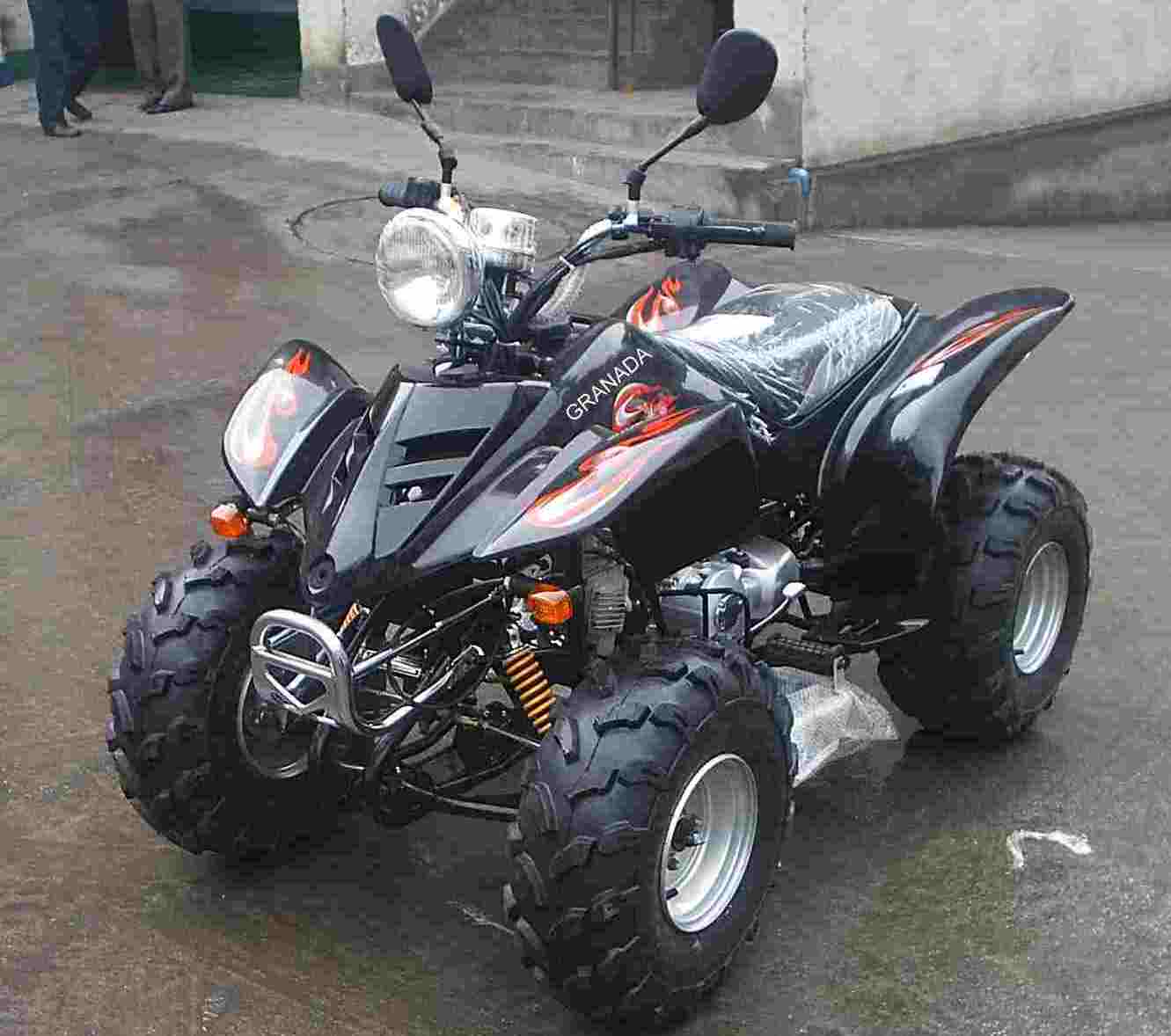

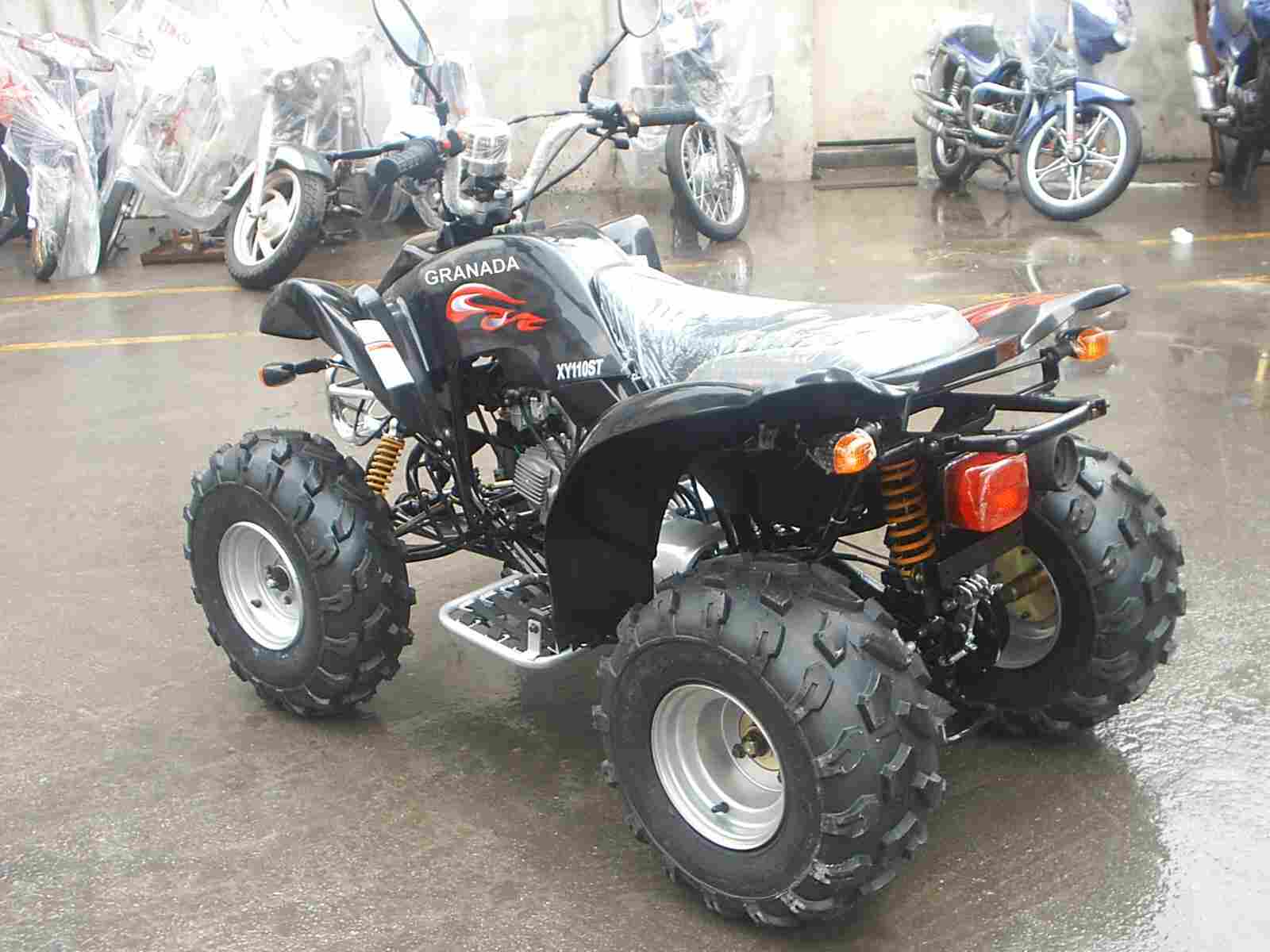

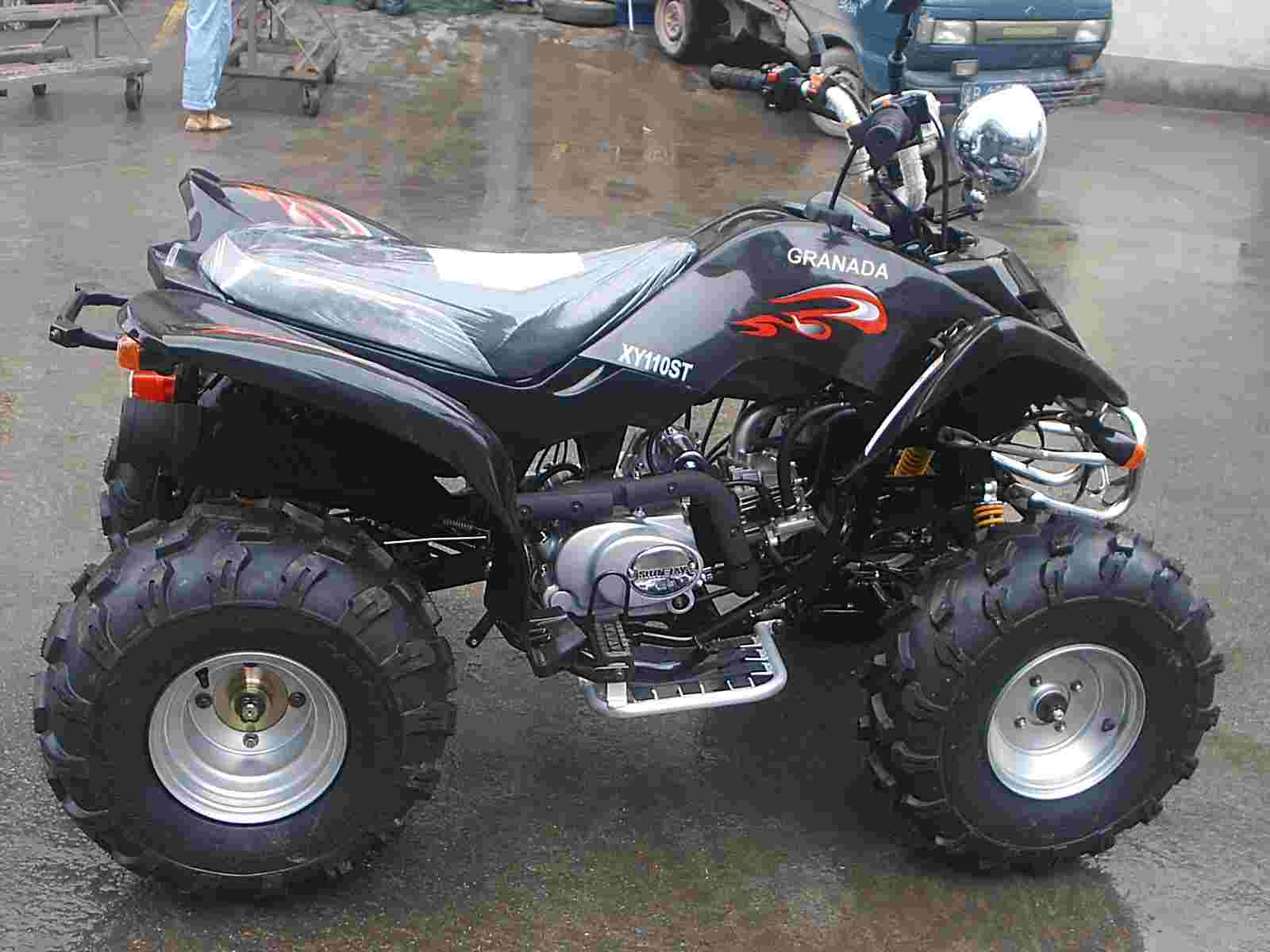

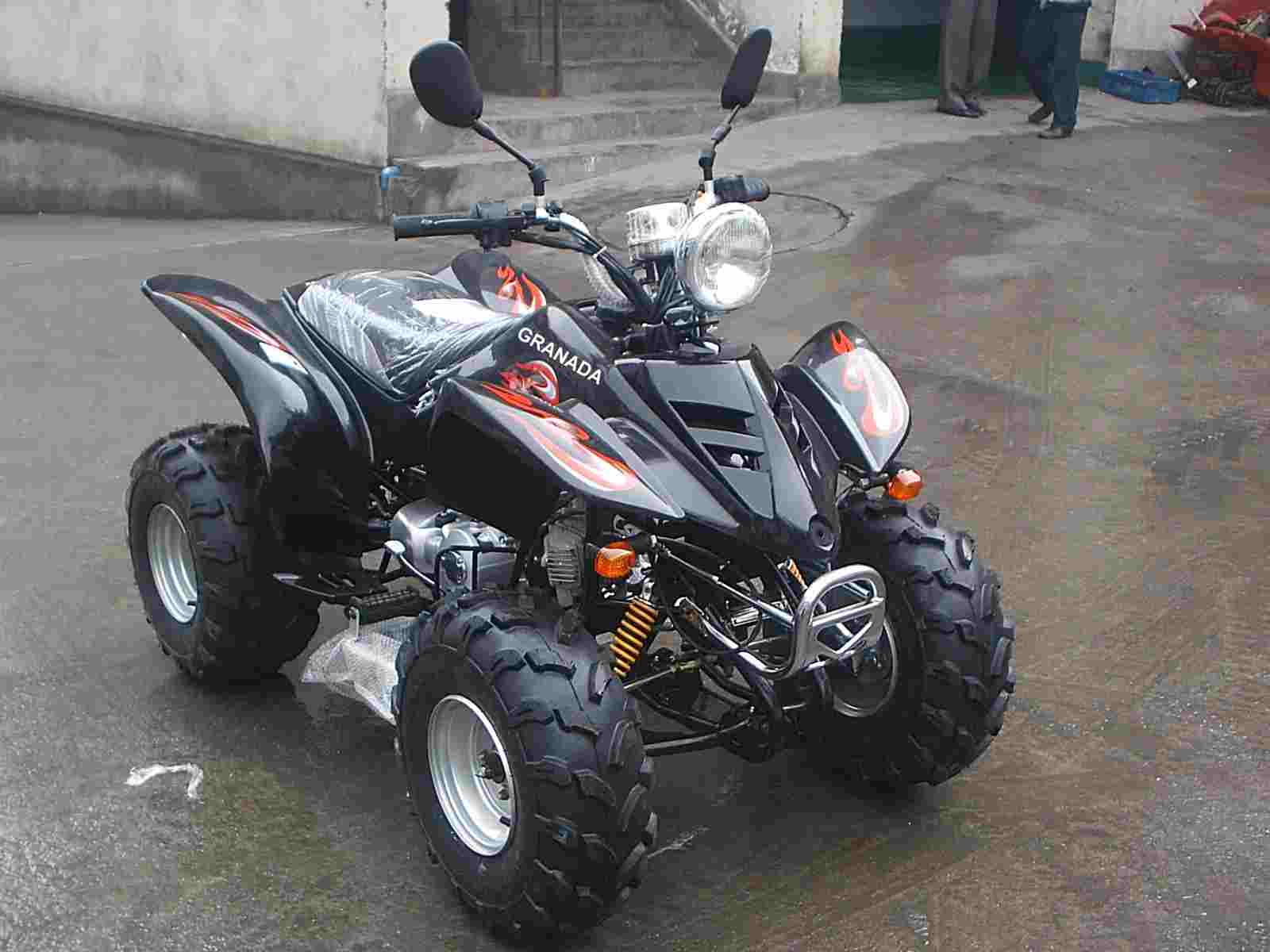

Red Cat 110 EEC ATV
