WELCOME TO GIANT WELL MOTOR WORLD |
|
EPA Certificated | 800cc ATV | 600cc ATV | 400cc ATV | 300cc ATV | 200cc ATV |
|

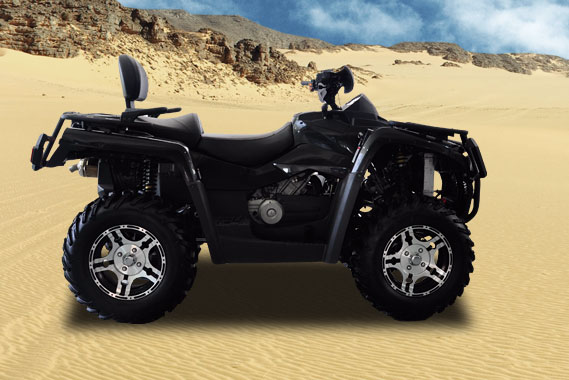

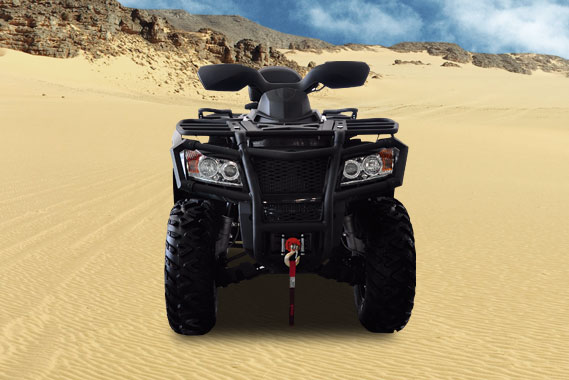

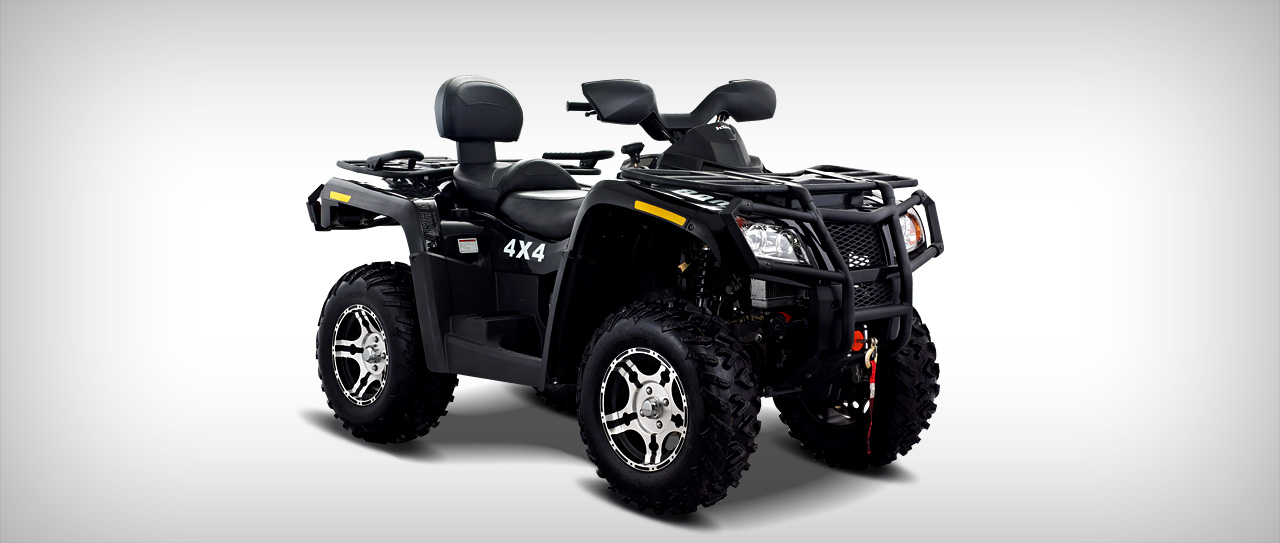

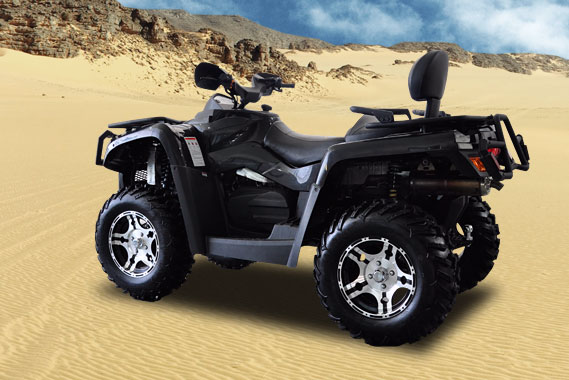

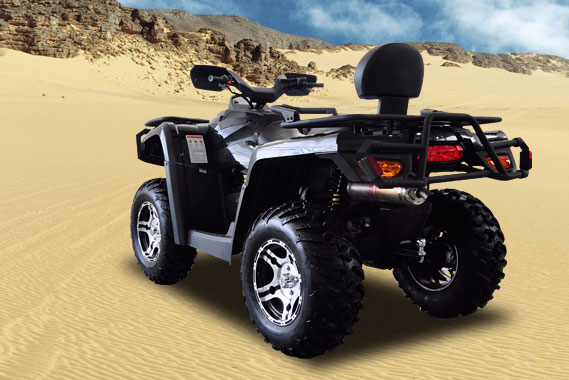

Hunter 800 cc Deluxe 4x4 ATV |
|
4-Stroke, Fully Automatic,
Indepent Front Suspension, Head/Brake Lights, Rear Disc Brake |
| Engine Type |
V-twin, 8-valve, SOHC, EFI, Liquid-cooled |
| Displacement |
800cc |
| Compression Ratio |
10.3:1 |
| Maximum Torque |
72N.m/6000rpm |
| Max. Power |
46kw/6700rpm |
| Fuel Supply |
EFI |
| Ignition |
ECU |
| Transmission |
CVT |
| Drive |
Selectable 2WD/4WD |
Dimensions and Weight |
|
| L x W x H |
2,310 x 1,180 x 1,340mm |
| Wheelbase |
1,480mm |
| Seat Height |
Front:800mm, Rear:960mm |
| Mini Ground Clearance |
270mm |
| Mini Turning Diameter |
8.2m |
| Fuel Capacity |
23L |
| Curb Weight |
392kg |
| Payload Capacity |
150kg |
Chassis |
|
| Brake |
Hydraulic |
| Suspension |
Dual A-arm |
| Shock Absorber |
Spring Preloaded, Oil Damping |
| Rim |
Front: Light Alloy 12×6.0AT/Aluminum Alloy 14×7.0AT, Rear: Light Alloy 12×7.5AT/Aluminum Alloy 14×8.0AT |
| Tire Pressure(kpa) |
Front: 26×9-12 49J/AT 26×9-14 48J, Rear: 26×11-12 55J/AT 26×11-14 54J |
| Color(s) Available |
Titanium Grey, Red, Metallic Blue, Crystal Orange |
| |
|
| |
|
| Parking Brake |
Mechanical Lock |
| Max. Load Capacity (lb) |
210 |
| Max. Speed (mi/hr) |
45 |
| Battery |
12V-9A |
| PACKING SIZE (in) |
226x132x117 cm /G.W. 435 KGS NW: 410KGS |
Gallary
|
|
