WELCOME TO GIANT WELL MOTOR WORLD |
|
EPA Certificated | 800cc ATV | 600cc ATV | 400cc ATV | 300cc ATV | 200cc ATV |
|

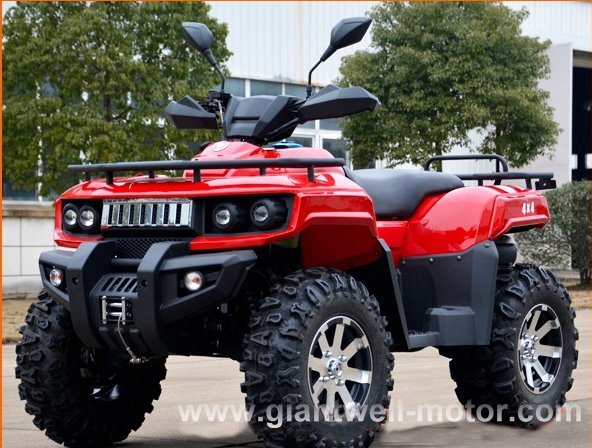

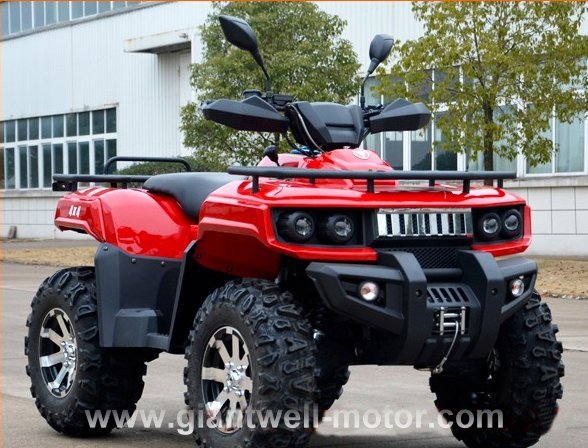

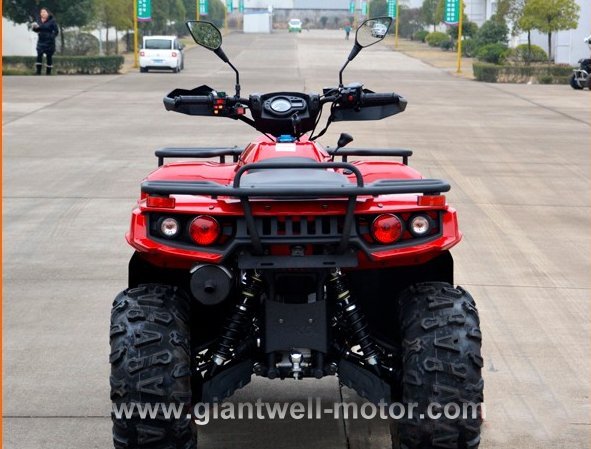

GW 3000 W Electric ATV |
|
Fully Automatic,
Indepent Front Suspension, Head/Brake Lights, Rear Disc Brake |
| Motor |
72V, 3KW
|
| Charge |
72V, 9AH
|
| Battery |
72V, 80Ah |
| DC-DC |
72V, 300W
|
| Peak. Power |
6KW
|
| Rated Revolution
|
2850r/min |
| Max Rated Revolution
|
4650 r / Min |
| Ingress Protection
|
IP 55 |
| Insulation Leve
|
F |
Max Speed |
50km/h |
| Brakes
|
Disk Brakes F/R |
| Wheelbase
|
1,285 mm |
| Distance Between Wheels :
|
Front Wheels: 995mm Rear Wheels: 1035mm
|
| Minimum Ground Clearance
|
300mm |
| Tire |
Front Tire: AT25x8-12
Rear Tire: AT25x10-12 |
| Tyre Pressure
|
35kpa |
| Wheel Hubs
|
Steel |
| Max Loading
|
150kg |
N.W
|
420kg |
| Overall Size |
2110 x 1290 x 1445mm |
| Carton Dimensions |
1900 x 1150 x 820mm |
| Conveyance |
Qty/40'HQ: 27pcs |
| |
|
| |
|
| |
|
Gallary
|
|
