HUNTER 600 cc |
|
| 4 Stroke, 4 Speed Semi-Auto with Reverse, Shaft Drive, Independent Front Suspension, Head/Brake Lights |
| Engine Type |
2 Cylinder, V‐Twin, 4‐Stroke, SOHC |
| Engine Displacement |
552 cc |
| Bore x Stroke |
70 X 71.1mm |
| Fuel System |
Delphi Electronic Fuel Injection |
| Cooling System |
Liquid‐Cooled |
| Ignition |
ECU Control Start |
| Max. Power Output |
27kw/6500r/min |
| Fuel Capacity |
45N.M/5000r/min |
| Lubrication System |
Splash & Press |
| Starting System |
tElectric Start & Hand Pull Start |
| Transmission Mode |
Automatic CVT with H/L/N/R |
| Final Drive |
Shaft Drive 4WD |
| Shift Switch(2WD/4WD |
YES |
| Battery |
12V 14Ah4Ah |
| Wheels and Brakes |
|
| Tyres Front |
25X8‐12 |
| Tyres Rear |
25X10‐12 |
| Parking |
Mechanics Parking Brake |
| Suspension Front |
MacPherson Independent Suspension |
| Suspension Rear |
Twin‐A Arm Independent Suspension |
| Brakes Front / Rear |
Hydraulic Disk Brake |
| Dimensions and Weight |
|
| Product Dimension(LxWxH |
2,150x1,195x1,210mm |
| Carton Dimension(LxWxH) |
2,300x1,370x865mm |
| Seat Height |
905 mm |
| Wheelbase |
1,295mm |
| Ground Clearance |
250mm |
| Dry Weight |
365kg |
| Gross Weight |
440kg |
| |
|
| Container Load ing |
26 units/40'HQ |
| |
|

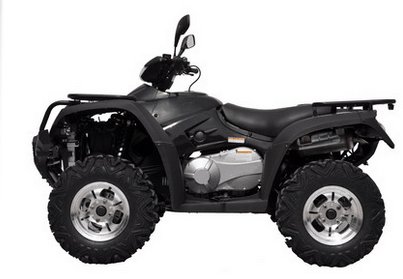

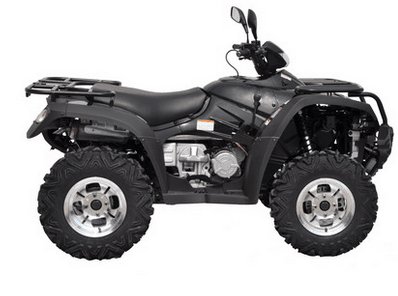

Gallary
|
|
