Hunter 250 UTV 　|　Hunter 650 UTV 　|　Mustan 250 UTV 　|　Mustan 650 UTV 　|　

Mustan 500cc 4WD UTV

Engine Type	4-Strokes, Single Cycle
Displacement	600cc
Compression	10:2:1
Horsepower	38hp
Max Speed	49MPH
Cooling	Water Cooled
Ignition	C.D.I
Starting System	Eleciric
Carburator	Conventional
Transmission	V-Belt H-L-N-R
Drive Train	Shaft
Differential	3 Way Locking Diff
Engine Braking	All Wheel

CHASSIS ETC
Driving Wheel	Selectable 2 or 4 WD
Suspension	Dual A-Arm
Travel Front	13.8"
Travel Rear	13.9"
Fr,Re Shock	Coil Over Shock
Brakes	Hydraulic Disk Brake
Tires Front & Rear	25 x 10 x 12
Fuel	8.0 Gal
Dry	1124 lbs
Max Load	650 lbs
Turn Radius	158.4"
Towing capacity	1600 lbs
Parking Brake	Custom Alley Rims
Wheelsbase	75.5
Length	119.2"
Height	75"
Width	69"
Min Ground	14.8"
PACKING SIZE (in)	226x132x117 cm /G.W. 435 KGS NW: 410KGS

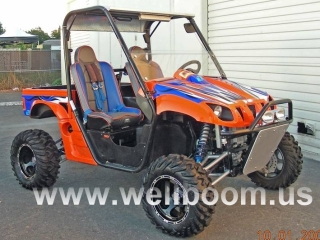

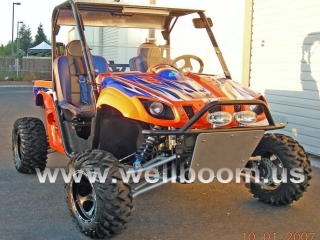

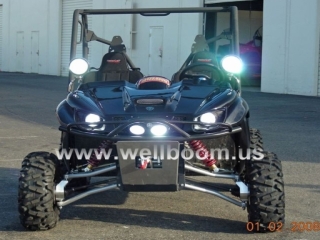

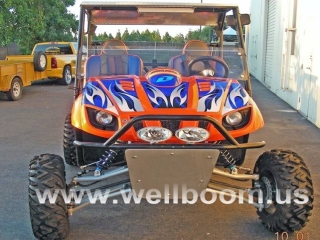

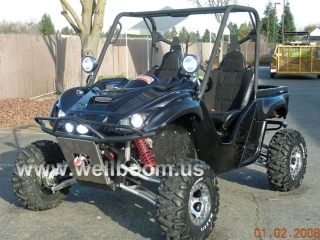

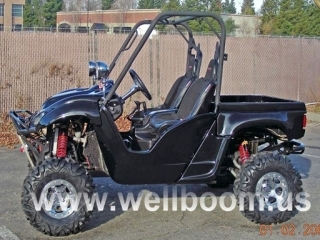

Gallary
