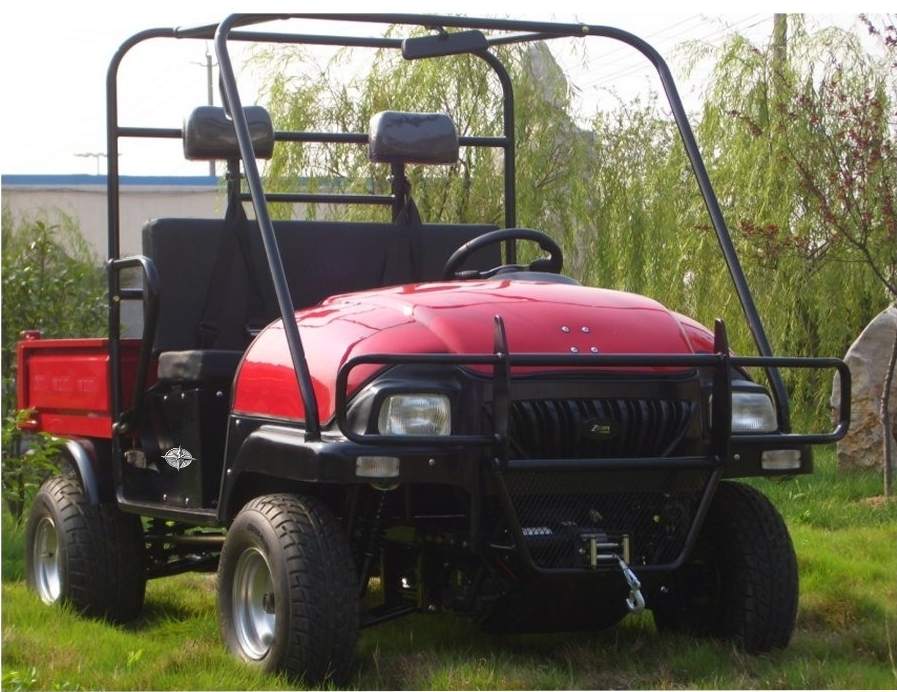

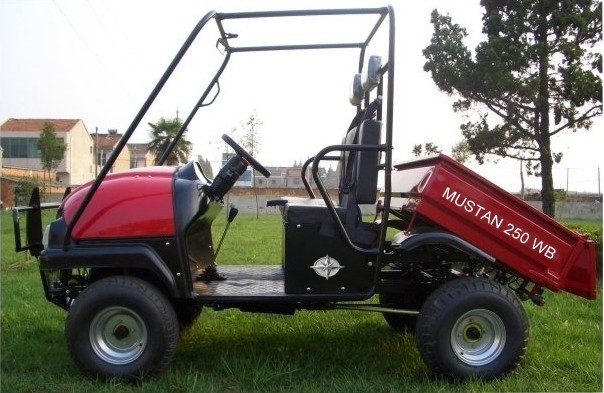

Mustan 250 2WD UTV |
| |
4-Stroke, Fully Automatic,
Indepent Front Suspension, Head/Brake Lights, Rear Disc Brake |
| Engine Type |
4-Strokes, Water Cooled, Fully-Automatic |
| Cylinder Arrangement |
Double Cylinder |
| Transmission System |
Reverse N1230 Shaft Drive 4WD |
| Bore x Stroke (mm) |
57x57.8 |
| Piston Displacement (cc) |
147.4 |
| Compression Ratio |
8.4:1 |
| Maximum Power (kw/r/min) |
14kw 4500r min |
| Maximum Torque (N.m./rpm) |
14/kw/4500r |
| Starter System |
Electric/ Kick |
| Lubrication |
Forced pressure(wet sump) |
| Transmission |
Shaft Drive |
| Overall LxWxH (in) |
88x50x44 inch |
| Wheel Base (in) |
60 |
| Seat Hight (in) |
44 |
| Min. Turning Radius (mm) |
2800 |
| Ground Clearance (in) |
4 |
| Rider Capacity |
2 Person |
| Dry Weight (lb) |
275 |
| Brake (Front/Rear) |
Drum/Disc |
| Tyre, Front |
25x10x12 |
| Tyre, Rear |
25x10x12 |
| Ignition Type |
C.D.I |
| Fuel Tank Capacity (L) |
12L |
| Engine Oil Capacity (L) |
1L |
| Gear Oil Capacity (L) |
|
| Front Suspension |
Independent,Telescopic Arm |
| Rear Suspension |
Swing Arm |
| Parking Brake |
Mechanical Lock |
| Max. Load Capacity (lb) |
210 |
| Max. Speed (mi/hr) |
45 |
| Battery |
12V-9A |
| PACKING SIZE (in) |
226x132x117 cm /G.W. 435 KGS NW: 410KGS |
