WELCOME TO E-BIKE WORLD



FUN FOR ALL AGES


LD-200PY | LD-150PY | LD-125PY | LD-110PY | LD-70PY

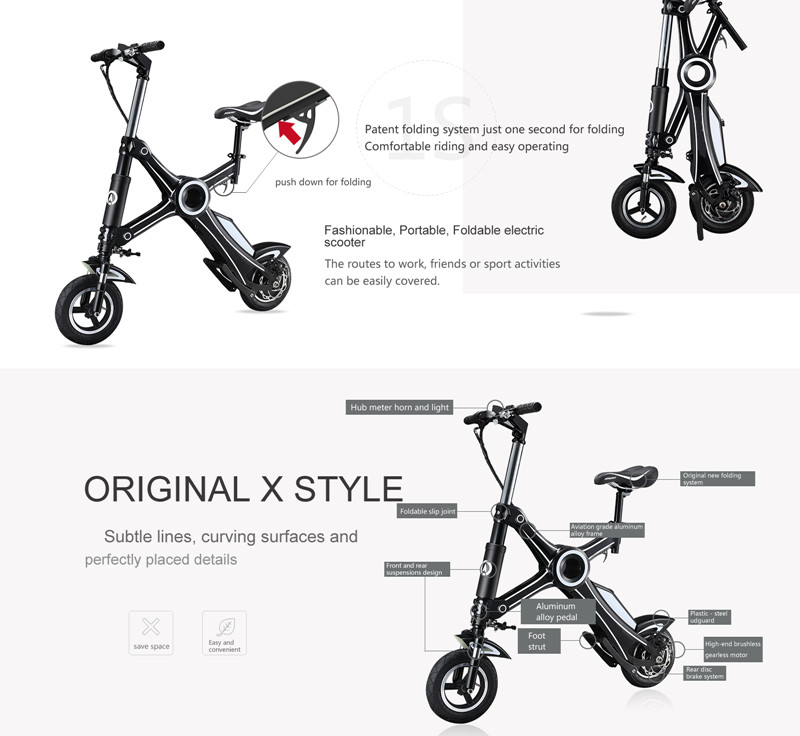

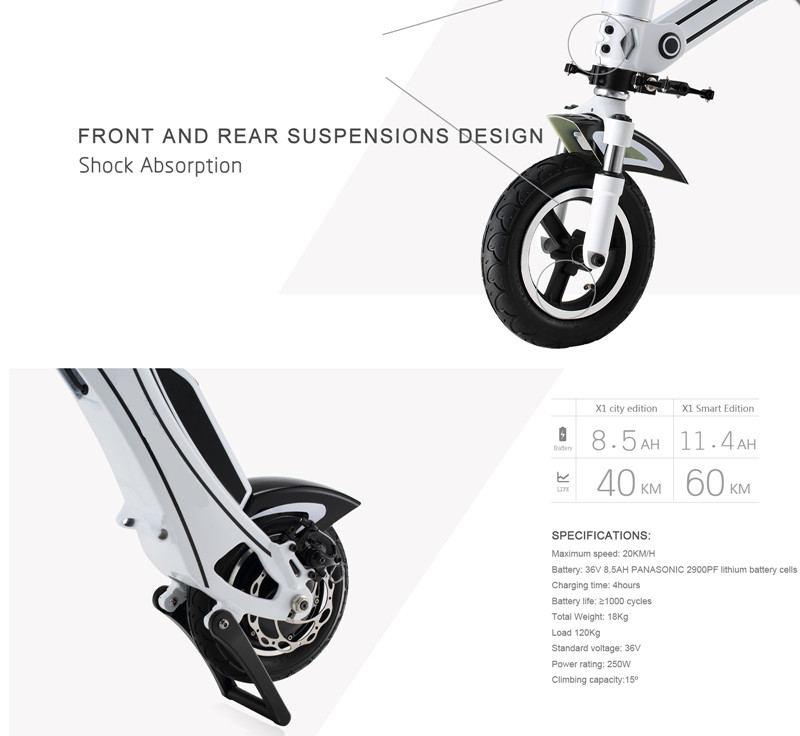

GW E-488 ELECTRIC FOLDING BIKE

12inch 36v 250w brushless motor inner 4 speed Gear Mini Folding e bike with CE

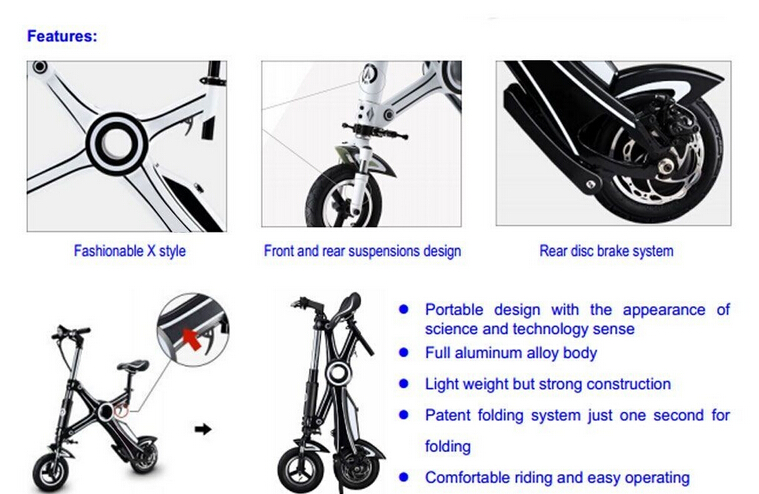

Main Features :
1. with 12.5 inch mini wheel, fashion foldable design
2. max speed at 25km/h, enjoy your pleasent journey

3. smart balance electric bike, only 18kg
4. built-in bluetooth speaker, can display music during travel
5. can be easily put in the back of any car

Electric System :
Motor: 36V/300W brushless motor
Charger: 110-240V Smart Charger
Performance
Charging time: 3-5 hours
Max speed: 25km/h
Range per charge : 30-55km

Loading capacity: 150KG
Main Components
Tires: 12.5" vacuum tyre
Packing size: 1310mm*375mm*550mm

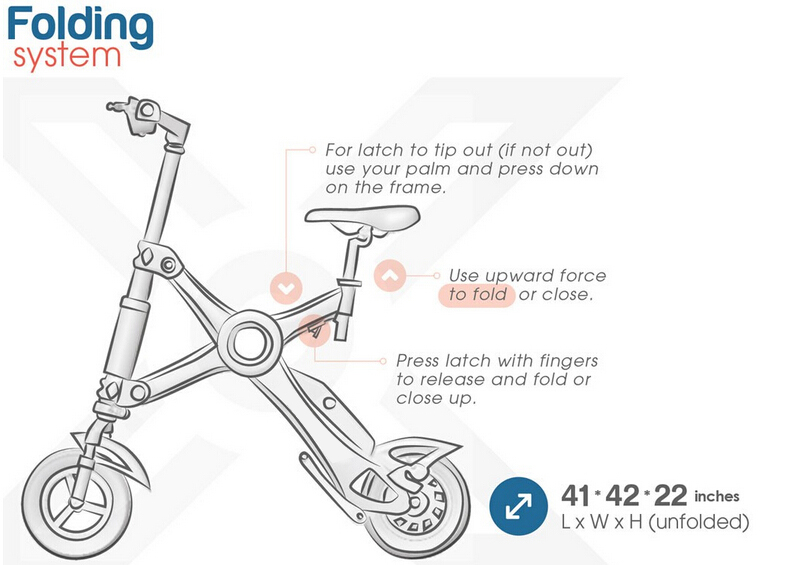

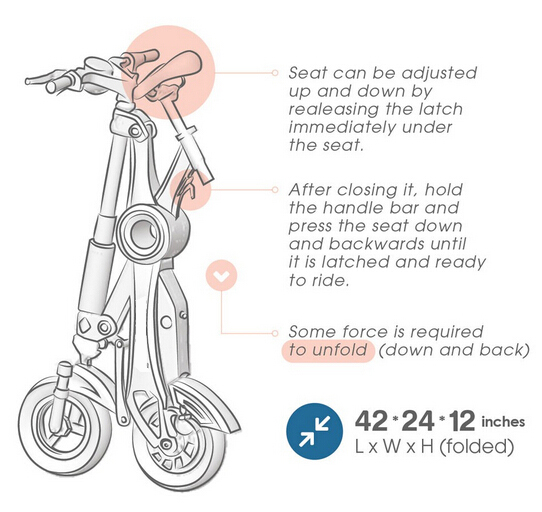

Folding size: 1235mm*536mm*270mm
Unit size: 1200mm*615mm*985mm
Other
N.W./G.W.: 18KG/25KG

Quick Details :
Wattage: 200 - 250w Voltage:
Wheel Size: 12” Motor:
Frame Material: Aluminum
Range per Power: 31 - 60 km
Model Number: ES-M8
Net weight: 18kgs
Max mileage: 35-55km option
Motor type: Brushless motor
Foldable: Yes

Place of Origin: China (Mainland)
Unfold size: 1200mm*615mm*985mm
Max load: 150kg-200kg
Battery Capacity: 8.8Ah, 10.4Ah option
Overcurrent protection: 13A+-1A
Max Speed: 30-50km/h

Fold size: 1235mm*536mm*270mm
Max speed: 25km/h
Rated power: 240W
36V Power Supply: Lithium Battery
Brushless Certification: CE

Packaging & Delivery :
Packaging Details:
Double carton package: 1310mm*375mm*550mm
Delivery Detail: 7 days after payment confirmed.
