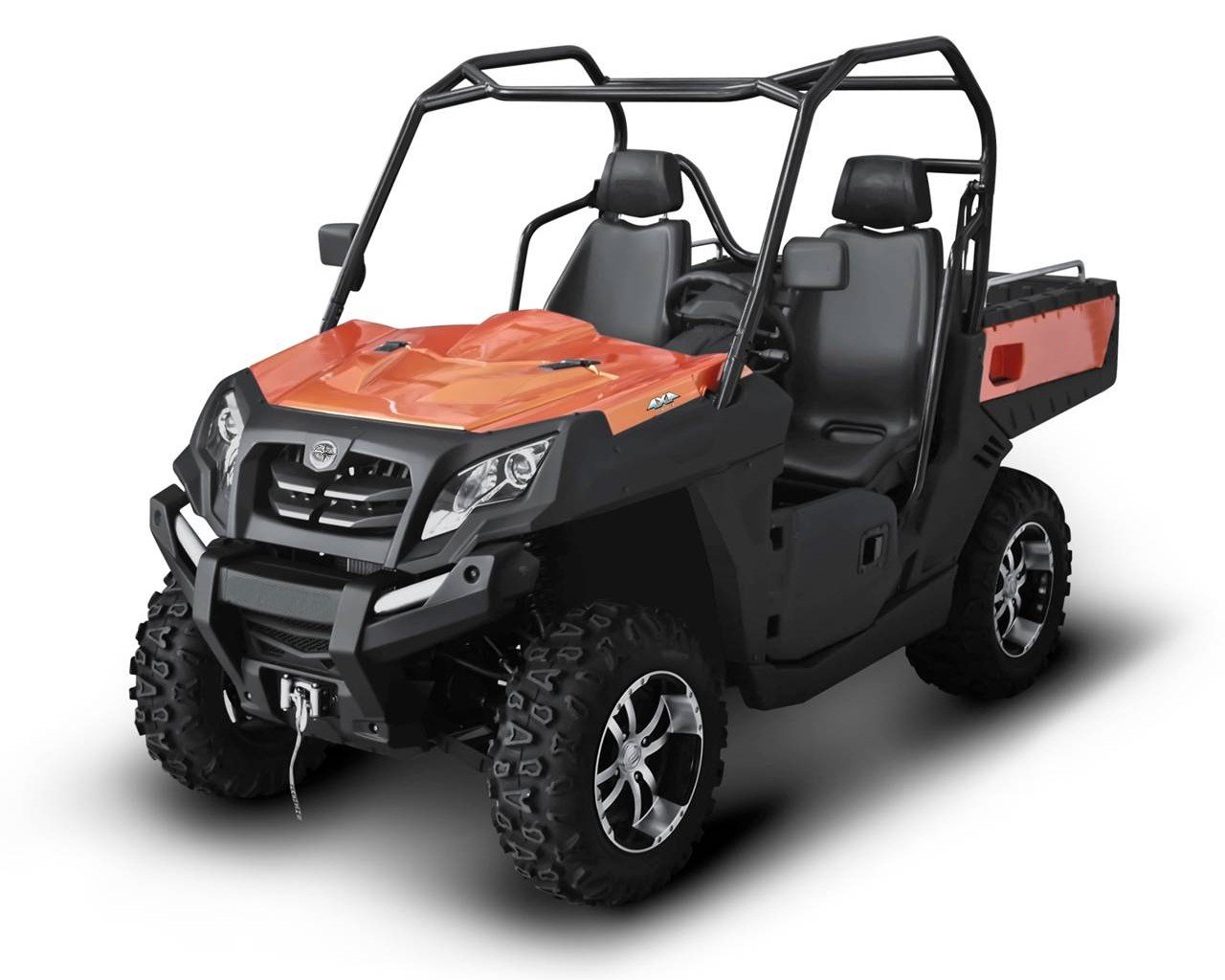

Hunter 800 4WD UTV |
| |
2-Stroke, Fully Automatic,
Indepent Front Suspension, Head/Brake Lights, Rear Disc Brake |
| Engine Type |
V-twin, 8-valve, SOHC, EFI, Liquid-coole |
| Displacement |
800cc |
| Transmission System |
Reverse N1230 Shaft Drive 4WD |
| Bore x Stroke (mm) |
91x61.5 mm |
| Compression Ratio |
10.3 : 1 |
| Fuel Supply |
EFI |
| Maximum Power (kw/r/min) |
46kw/6700rpm |
| Maximum Torque (N.m./rpm) |
72N.m/6000rpm |
| Starter System |
Electric/ Kick |
| Ignition |
ECU |
| Transmission |
CVT |
| Drive Switchable |
2D/4D |
Dimensions and Weight |
|
| L x W x H |
2,973 x 1,430 x 1,883mm |
| Wheelbase |
1,830mm |
| Seat Height |
445mm |
| Mini Ground Clearance |
280mm |
| Mini Turning Diameter |
9.1m |
| Fuel Capacity |
26L |
| Curb Weight |
590kg |
| Payload Capacity |
230kg |
Chassis |
|
| Brake |
Hydraulic |
| Suspension |

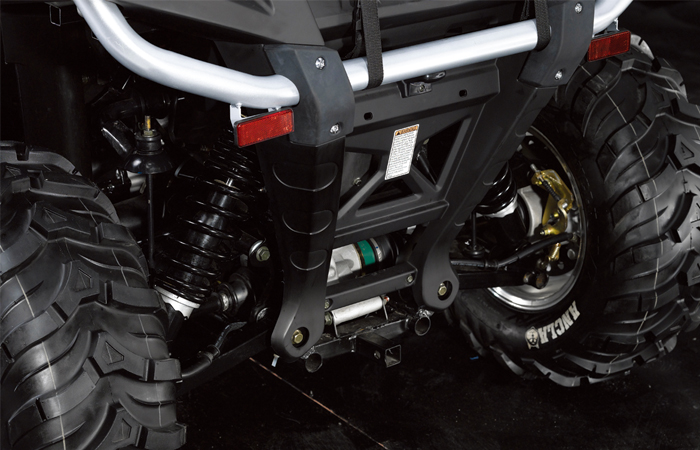

Dual A-arm |
| Shock Absorber |
Spring Preloaded, Oil Damping |
| Rim Front |
14×7.0 AT Aluminum Alloy |
| Rim
Rear |
14×8.0 AT Aluminum Alloy |
| Tire Pressure(kpa) |
Front: 26×9-14 52J 70, Rear: 26×11-14 66J 100 |
| Color(s) Available |
Titanium Grey, Crystal Orange, Pearl Black, New Camo Maple |
| |
|
| |
|
| |
|
