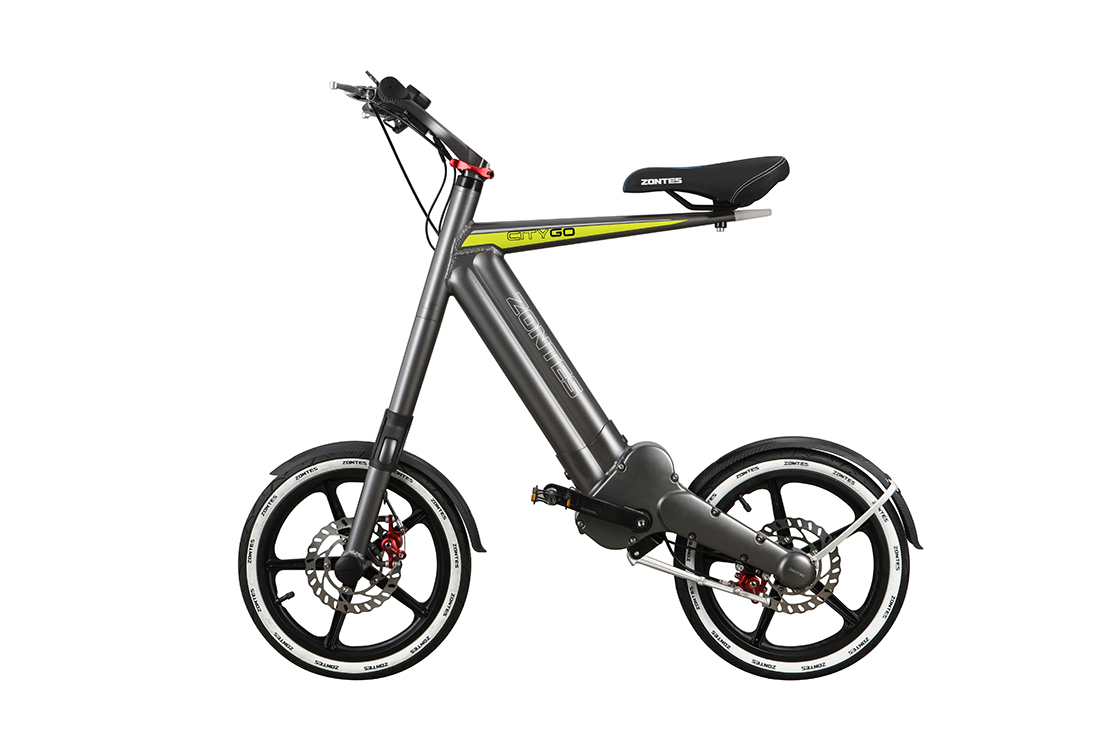

GW Electric Folding Scooter

Technical Data

Whole motorcycle		Power system		Suspension system

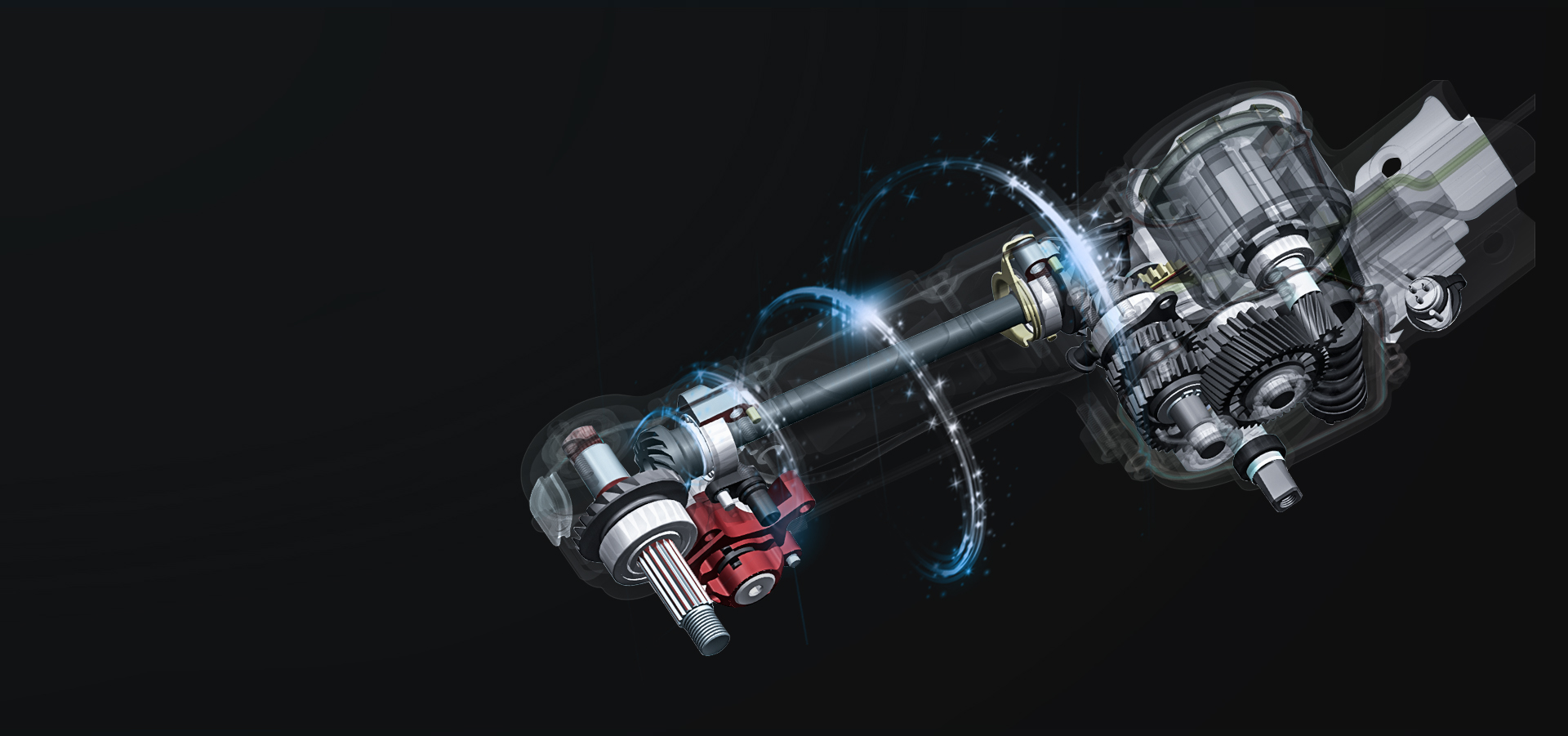

Length (mm)	1106	Transmission system	shaft transmission	Frame system	Aluminum frame
Width (mm)	480	Motor system	built-in brushless motor	Top rake	73°

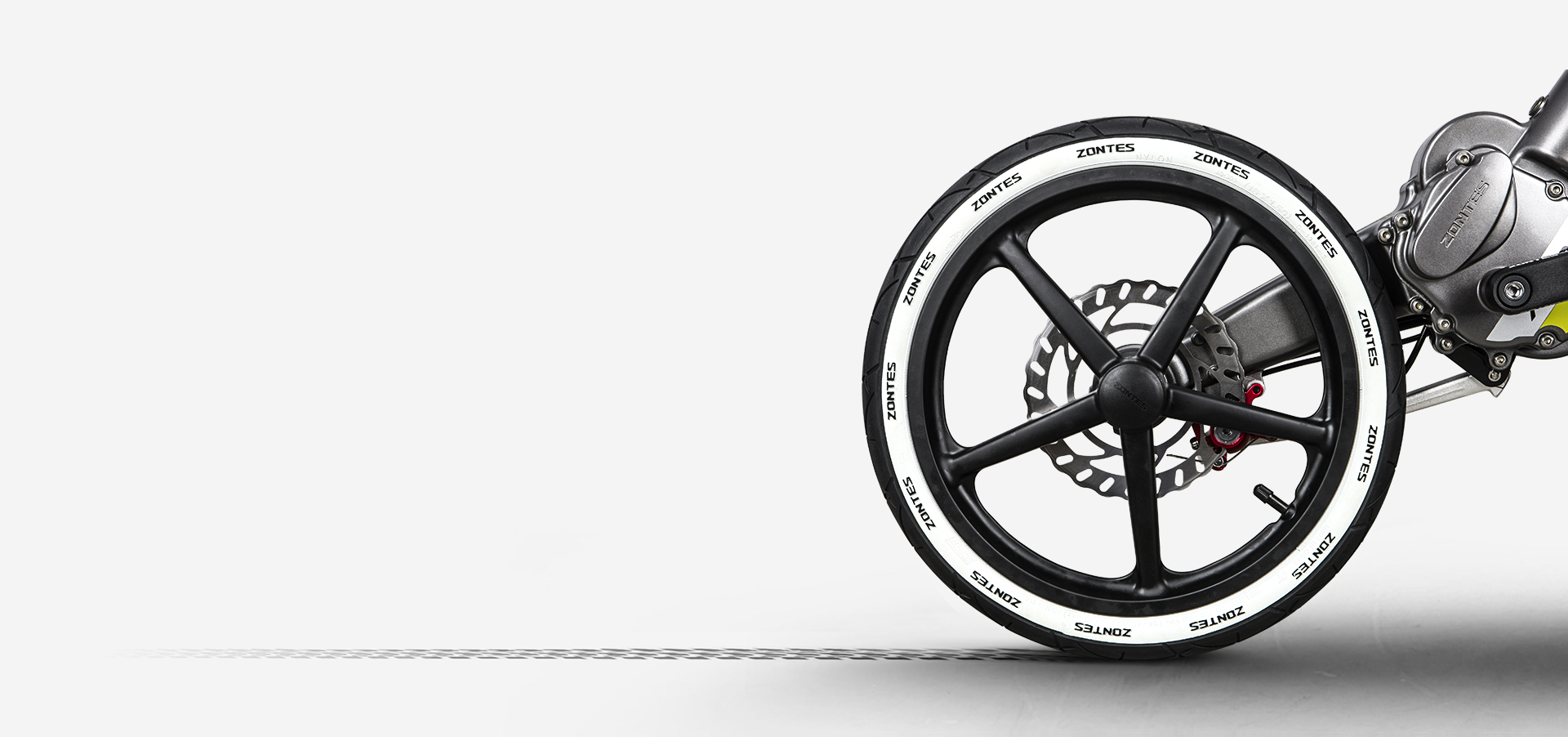

Height (mm)	993	Maximum power (w)	250	Tire size	16×1.50 pneumatic tire
Wheelbase (mm)	719	Rated torque (N.m)	0.65	Rim size	16 inches Magnesium alloy one-body rim
Net weight (kg)	17	Rated output torque(N.m)	5.96	Brake system	front and rear disk brake
Ground clearness(mm)	273	Maximum speed(km/h)	25	Full load(kg)	120
Seat height (mm)	855	Assist ratio	1:1	Crank	152 aluminum crank

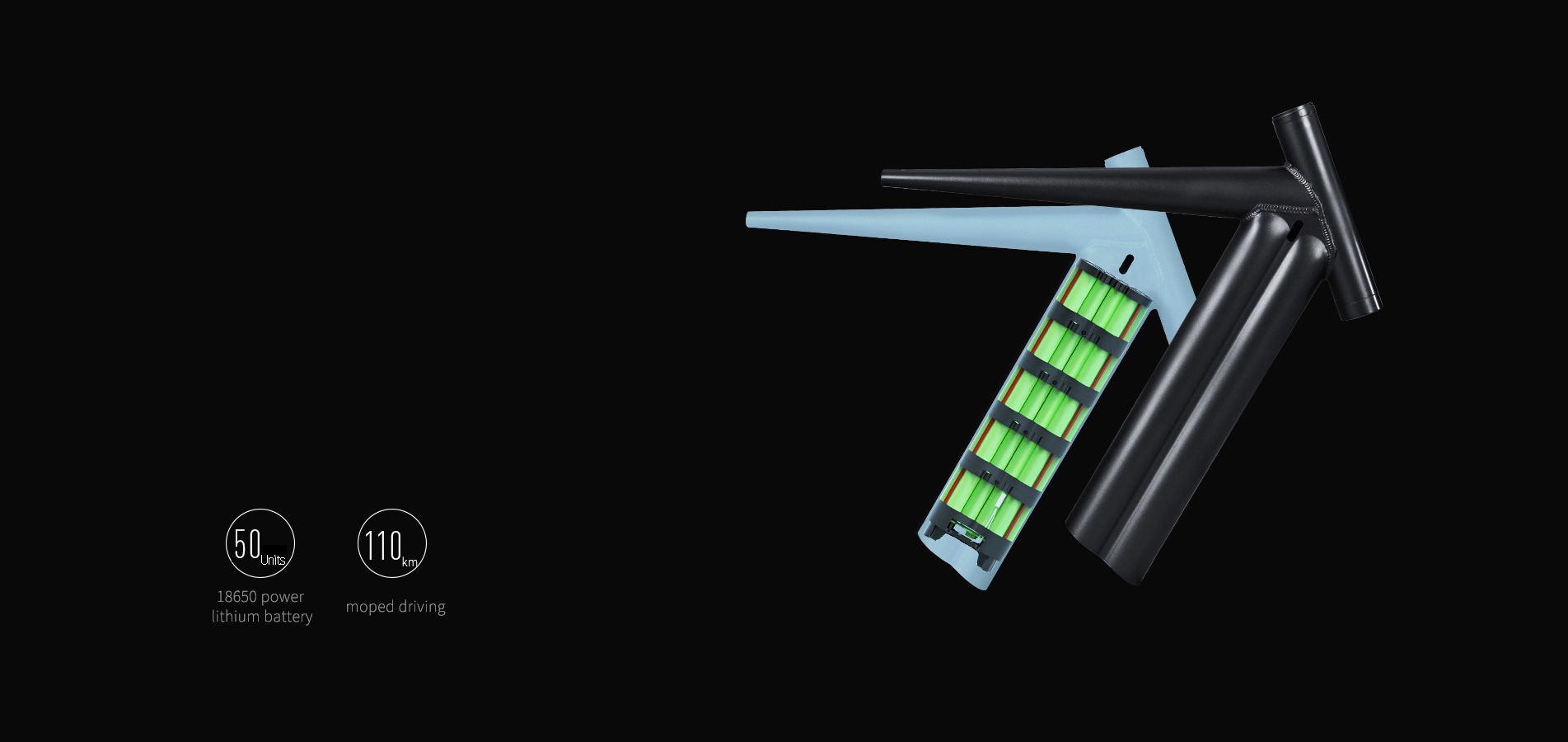

Wireless connection	Bluetooth 4.0 BLE	Battery type	18650
		Battery volume(A.h)	13.5
		Pure electric mode endurance(km)	50
		Moped mode endurance(km)	110
